STYLE: VSR
VSR is a single, external cartridge-mounted rotary seal design for installations where shaft deflection exceeds the limits allowed by off-the-shelf cartridge seals.

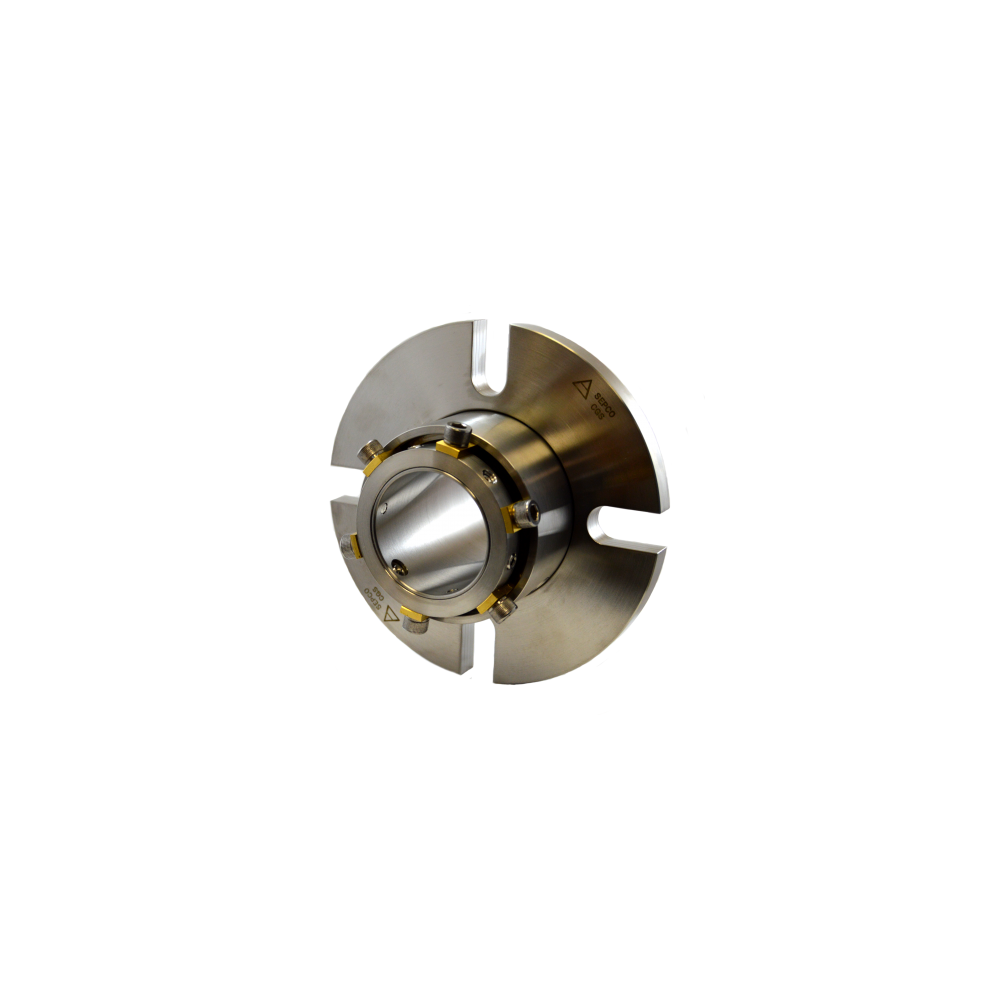

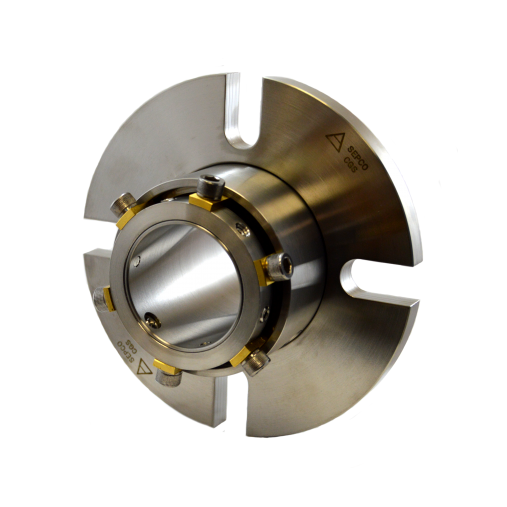

Cartridge Grease Seal
STYLE:CGS
Cartridge Grease Seal is an innovative mechanical seal mounted on a single cartridge and can replace double seals without needing a water flush. It has a distinctive characteristic that sets it apart from traditional seals: incorporating a grease barrier cavity. This cavity is a protective shield, preventing any product leakage into the atmosphere and eliminating the need for elaborate environmental controls. This feature ensures that CGS Seal is efficient and environmentally friendly, as it minimizes the potential for product contamination and eliminates the need for complex and expensive control measures. With CGS, you can rest assured that your equipment will operate safely and efficiently without the risk of harmful leaks or the burden of complicated environmental regulations.
Product Specifications
Operating Capabilities
- Pressures: 350 PSI
- Temperatures: 250°F / 120°C
- Speeds: 10000 ft/minute
Design Features
- Cartridge mounted
- Easy installation
- Facilitates impeller adjustments
- No critical installation measurements
- Versatile design fits standard and over-sized stuffing boxes
- Stationary Design eliminates misalignment, reduces wear
- High PV factors
- Single spring design
- Consistent face loads
- Non-clogging
- Internally nalanced
- Reduced hydraulic load
- Reduced power consumption
- Automatic grease dispenser option
- Automatic operation
- Easy to install, inspect & refill
- Low cost
- Reduced surveillance & maintenance
Industry Applications
- Power Generation
