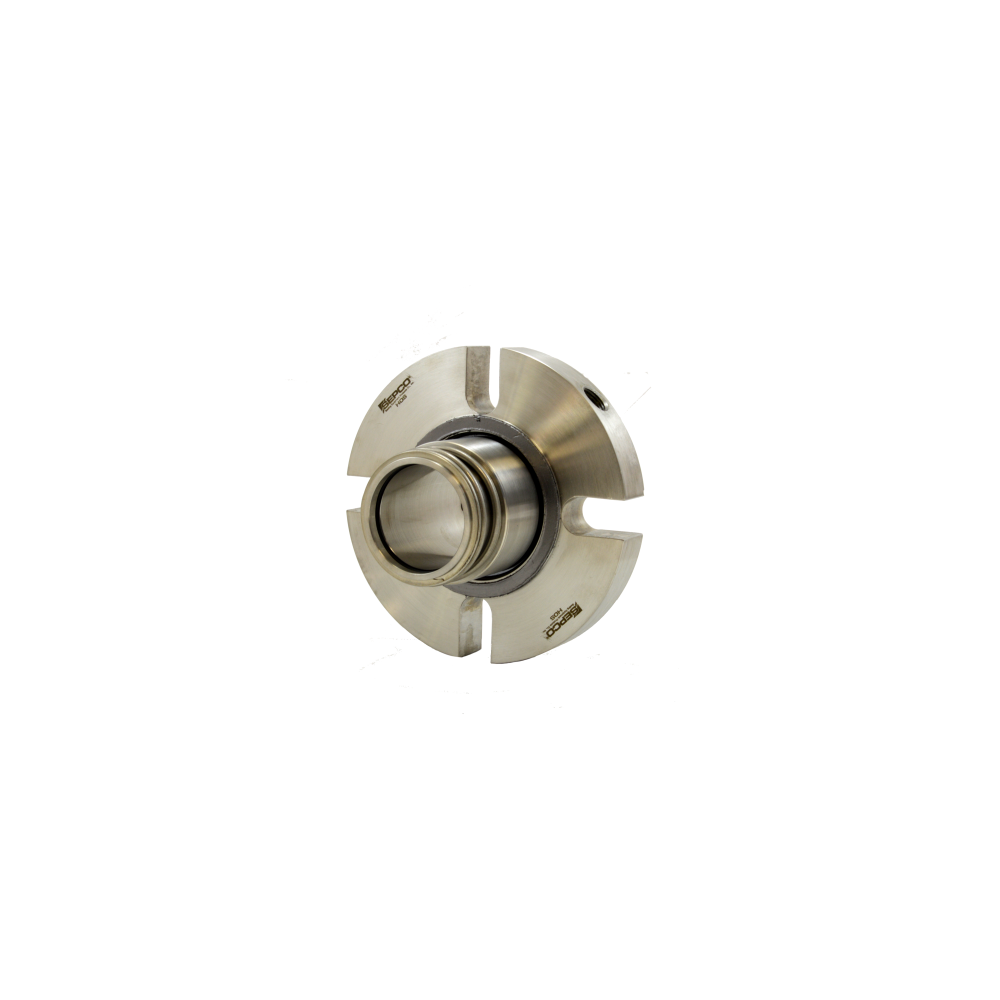

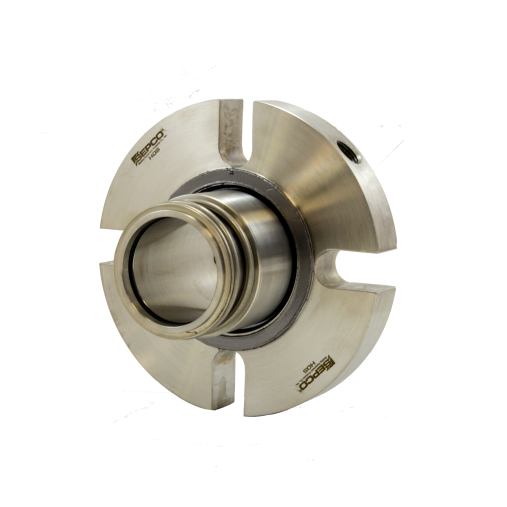

Hot Oil Seal
STYLE: HOS
HOS is a balanced single spring rotary seal capable of handling conditions much higher than conventional single spring designs.
Product Specifications
Operating Capabilities
- Pressures: 350 PSI
- Temperatures: 400°F / 204°C
- Speeds: 5000 ft/minute
Design Features
- Fits Narrow Stuffing Boxes
- Seal sizes 1” through 1-3/8” (inclusive) require a 5/16” cross section, and sizes 1-1/2” through 2-5/8” (inclusive) require a 3/8” cross section.
- Slotted Glands — The HOS design features a slotted gland that offers more versatility with bolting patterns.
- Impeller Adjustments — In Service Disassembling the pump is unnecessary to make impeller clearance adjustments.
- Cartridge Mounted
- The seal is pre-assembled at the factory, mounted on its sleeve and installed in the gland for easy installation.
- No Installation Measurements — Mechanics are not required to make critical installation measurements in order to install the seal.
- No Shaft Fretting Wear — No shaft fretting wear occurs, because the O-ring on the shaft is static and does not move.
Industry Applications
- Food & Beverage
- Oil & Gas
- Power Generation
- Water & Wastewater
