STYLE: GR64A
This nuclear grade 99.5% pure graphite ribbon with pressure sensitive adhesive (PSA) backing is self lubricating, corrosive resistant, and dimensionally stable at all temperatures. Ribbon-Pack is easy to...

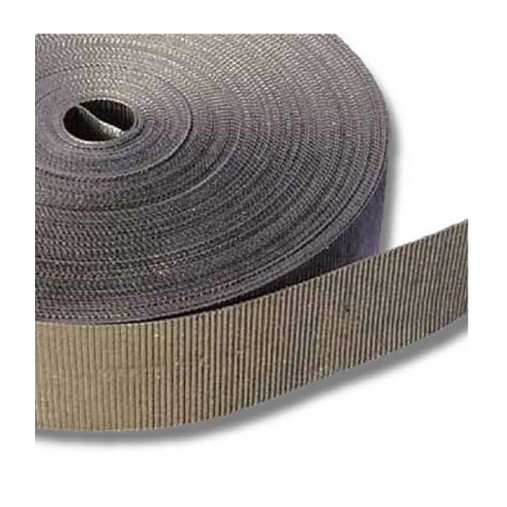

Nuclear Grade Flexible Graphite Ribbon-Pack
STYLE: GR64
This nuclear grade 99.5% pure graphite ribbon is self lubricating, corrosive resistant, and stable at all temperatures. Ribbon-Pack is easy to install, withstands high pressures and dissipates heat. Available in several thicknesses and widths for your application.
Product Specifications
Operating Capabilities
- Temperatures:
- -400 to 3000°F/1650°C (in non-oxidizing atmospheres)
- -400 to 850°F/454°C (in oxidizing atmospheres) and 1200°F/649°C (in steam)
Design Features
- Self lubrication and chemical resistant.
- Free from resins, filler, and binders.
- Won't soften , carbonize, chalk, shrink, lint, harden or cold flow.
- Dissipates heat and withstands high pressures.
- Dimensionally stable at all temperatures.
