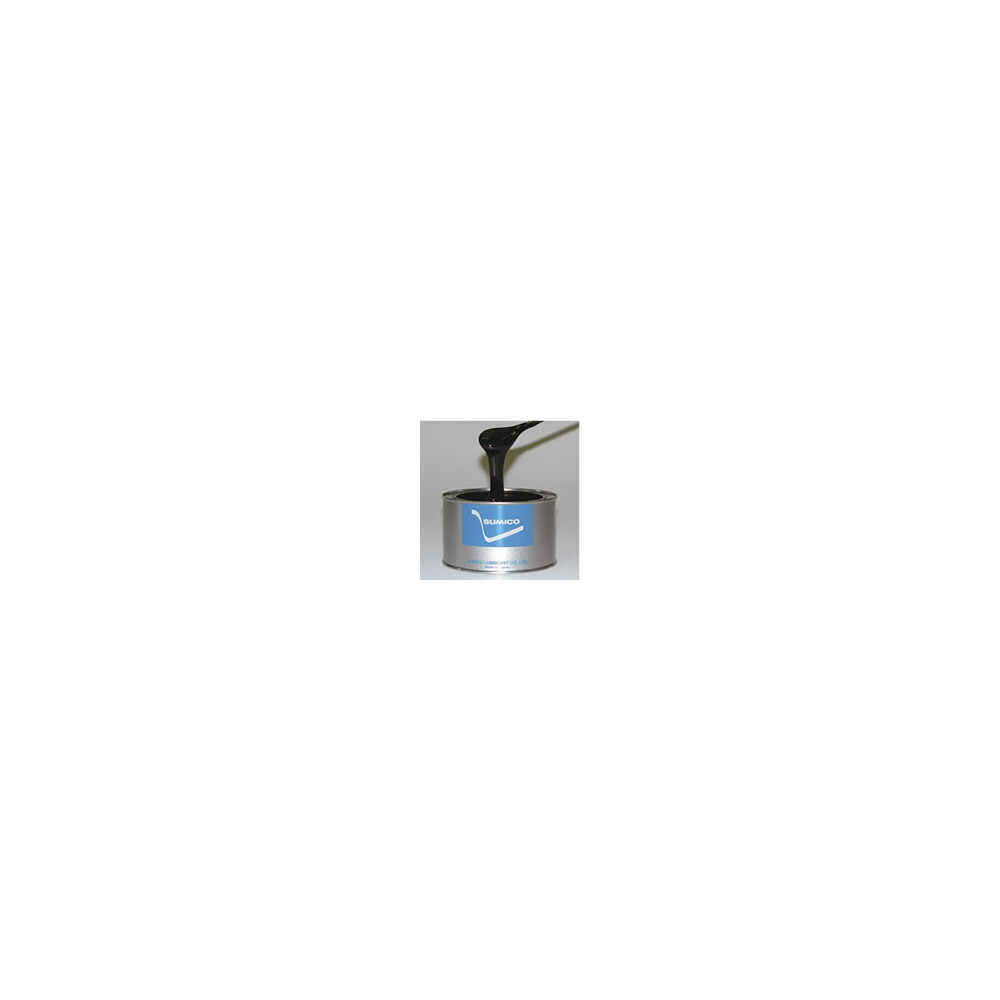

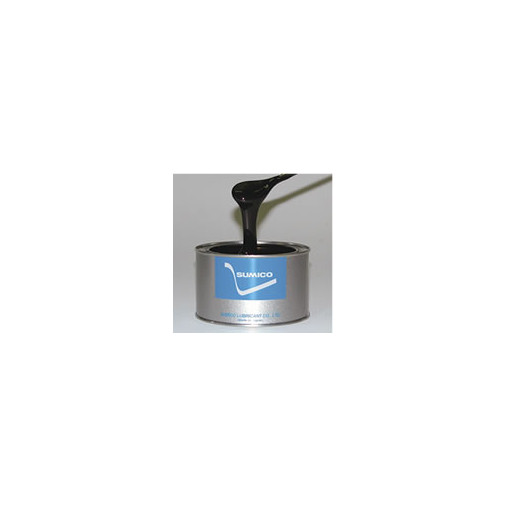

Open Gear Greases
Open Gear Greases
- Formulated with solid lubricants, such as molybdenum disulfide, and a high viscosity oil.
- Prevent gear damage, such as scoring or pitting, and wear and eccentric deformation of wire ropes, thanks to their excellent load bearing and adherence properties.
- Tolerant of temperature changes with minimal dripping or splashing.
Recommended For:
Open gears in construction machines and industrial cranes.
Open Gear
| Product Name | NLGI (worked penetration) |
Appearance | Thickener | Base Oil | Kinematic Viscosity of Base Oil 40℃ |
Load Carrying Capacity by Soda Four-Ball Test 768rpm,1min |
Approximate Operating Temperature Range | Description |
|---|---|---|---|---|---|---|---|---|
| Molygear Compound 900 |
- | Black | - | Mineral Oil ＋ Petroleum Asphalt |
920mm2/s （100℃） |
0.69MPa | 0～+70℃ | Gear compounds containing molybdenum disulfide (MoS2). Produce a semi-dry film with superior lubricity under heavy loads. |
| Molygear Compound 1500 |
- | 1,480mm2/s （100℃） |
0.78MPa | |||||
| Moly GG-S | No.1 （340） |
Bentone | Mineral Oil | 2,585mm2/s | 0.64MPa | −10～+100℃ | A Bentone grease containing molybdenum disulfide (MoS2). Exhibits enhanced performance over Molygear Compound. |
|
| Molygear Grease |
No.1 （325） |
517mm2/s | 0.44MPa | −10～+150℃ | A Bentone grease containing molybdenum disulfide (MoS2). Can be used over a wide temperature range. |
|||
| No.00 （415） |
0.39MPa |
