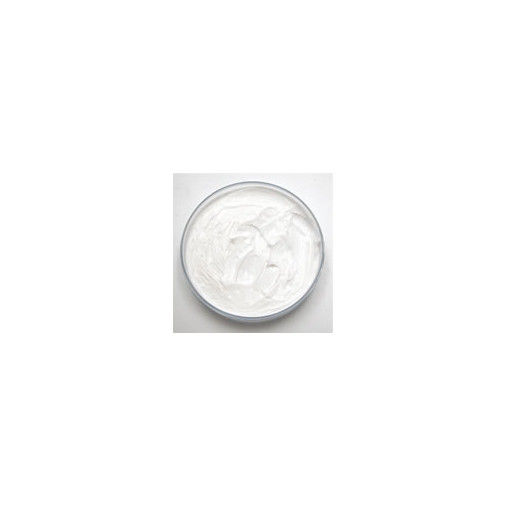

Fluorinated Greases
Fluorinated Greases
Achievement of Long-Term Lubrication with Excellent Chemical Stability
- Exhibit stable performance over long periods with low oxidation degradation or evaporation, thanks to a fluorinated base oil (PFAE).
- Excellent load bearing performance resulting from a combination of a PTFE thickener, solid lubricant additives, and a fluorinated base oil.
- Can be used over a wide temperature range, from low to high, because of relative immunity to the effect of temperature changes.
- Suitable even for use under vacuum conditions or in a clean room, thanks to the low vapor pressure of the base oil.
- Can be used in demanding environments with exposure to chemical or solvent splashes or for plastic and rubber lubrication.
Standard
| Product Name | NLGI (worked penetration) |
Appearance | Thickener | Kinematic Viscosity of Base Oil 40℃ |
Weld Load by Shell Four-Ball Test 1760rpm,10sec |
Approximate Operating Temperature Range | Description |
|---|---|---|---|---|---|---|---|
| Sumitec F936 |
- （300） |
White | PTFE | 440mm2/s | 3,923N | −20～+250℃ | The standard type. |
| Sumitec F931 |
- （300） |
400mm2/s | Especially suited as a high-temperature fluorinated grease. | ||||
| Sumitec F932M |
No.2 （280:0W） |
7,845N | A fluorinated grease that improves on Sumitec F931 in terms of rust prevention (containing a different antirust agent from Sumitec F932). | ||||
| No.1 （314:0W） |
6,080N |
Low Temperature
| Product Name | NLGI (worked penetration) |
Appearance | Thickener | Kinematic Viscosity of Base Oil 40℃ |
Weld Load by Shell Four-Ball Test 1760rpm,10sec |
Approximate Operating Temperature Range | Description |
|---|---|---|---|---|---|---|---|
| Sumitec F943 |
No.3 （235） |
White | PTFE | 58mm2/s | 3,089N | −35～+250℃ | Capable of keeping torque loss low, thanks to low viscous resistance resulting from a low-viscosity base oil. |
Wide Temperature Range
| Product Name | NLGI (worked penetration) |
Appearance | Thickener | Kinematic Viscosity of Base Oil 40℃ |
Weld Load by Shell Four-Ball Test 1760rpm,10sec |
Approximate Operating Temperature Range | Description |
|---|---|---|---|---|---|---|---|
| Sumitec F950 |
No.2 （284） |
White | PTFE | 140mm2/s | 7,845N | −50～ +250℃ | Uses a base oil with excellent stability of viscosity against temperature. Can be used over a wide temperature range, from low to high. |
| Sumitec F951 |
- （287） |
30mm2/s | - | Low viscosity base oil version of Sumitec F950 above. Effective against torque reduction at low temperature. |
Conductivity
| Product Name | NLGI (worked penetration) |
Appearance | Thickener | Kinematic Viscosity of Base Oil 40℃ |
Weld Load by Shell Four-Ball Test 1760rpm,10sec |
Approximate Operating Temperature Range | Description |
|---|---|---|---|---|---|---|---|
| Sumitec F970 |
- （322:0W） |
Black | - | 660mm2/s | 7,845N | −15～ +250℃ | A black conductive fluorinated grease with a low volume resistivity (2.4×104) attributed to graphite, tin and other additives. Ideal for bearings in printers, copiers and other machines that require antistatic measures. |
Prior to using a fluorinated grease, please take note of the following points:
- As fluorinated greases have a stable chemical structure, they are not compatible with other synthetic or mineral oils. If a fluorinate grease is applied to a surface on which any antirust agent, grease or the like has previously been applied, it is likely to be repelled from the surface, resulting in seizure.
- Although fluorinated greases are less toxic than general-purpose greases and non-flammable, they emit fluorine gas if heated to 260°C or more as a result of thermal decomposition of their ingredients. For this reason, be sure to use them within the specified temperature range.
- To remove old fluorinated grease, cleaning with a highly fluorinated organic solvent, such as our Sumitec Solvent 72 (5 kg), is effective.
