STYLE: ML5740HC
Finely ground particles of the highest quality graphite in a PTFE matrix to control graphite migration. It is effective in all equipment, including pumps, hydra-pulpers, and valves.

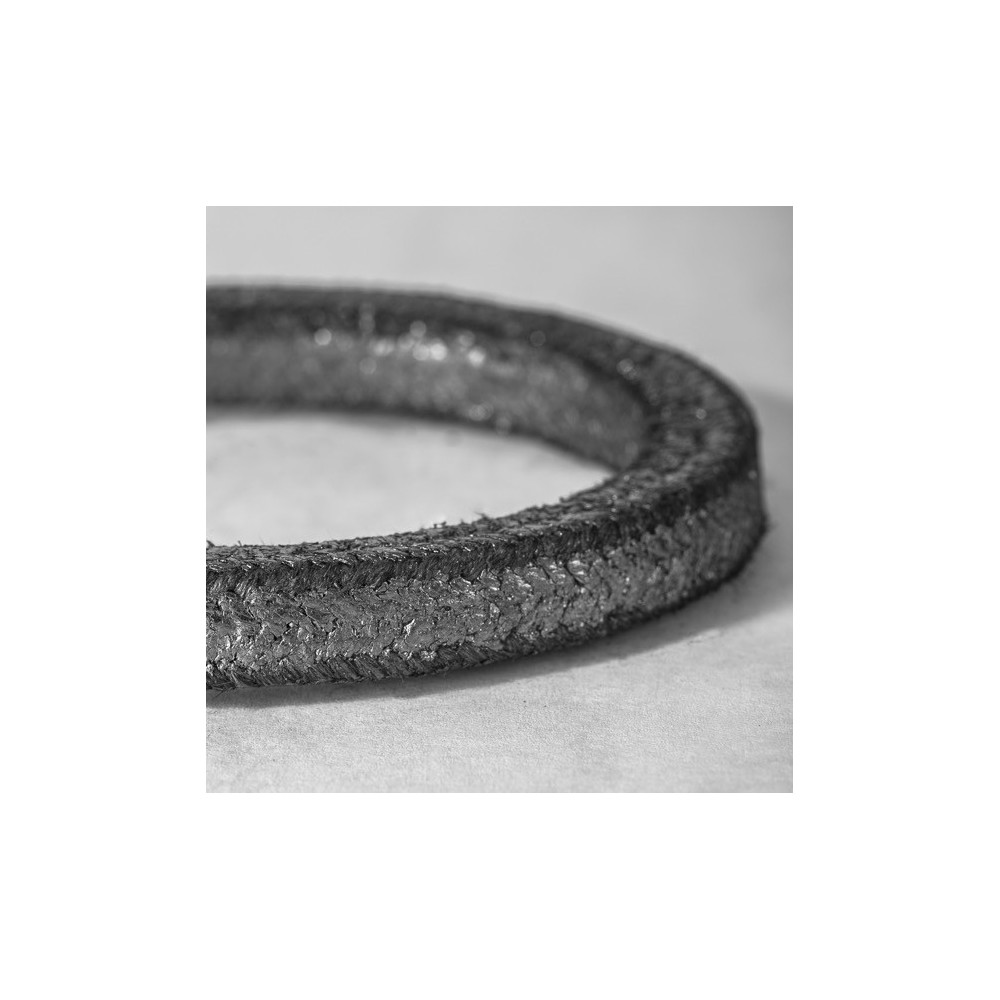

Flexible Graphite Packing with Carbon Corners
STYLE: ML8201
ML8201 is a Multi-Lok braided flexible graphite packing with carbon corners for added strength. It has no added lubricants or binders to cook out or become brittle. Recommended for rotating shafts where high shaft speeds and thermal conductive are needed.
Product Specifications
Operating Capabilities
- Pressures: 4500psi
- Temperatures: 1250°F/538°C
- Shaft speeds to 4000FPM
- pH: 0 to 14 (except strong oxidizers)
Features
Pure homogenous graphite bonded to a high temperature carrier for strength and thermal stability. The carbon corners in ML8201 make the packing even tougher and helps minimize packing extrusion.
