STYLE: ML5740HC
Finely ground particles of the highest quality graphite in a PTFE matrix to control graphite migration. It is effective in all equipment, including pumps, hydra-pulpers, and valves.

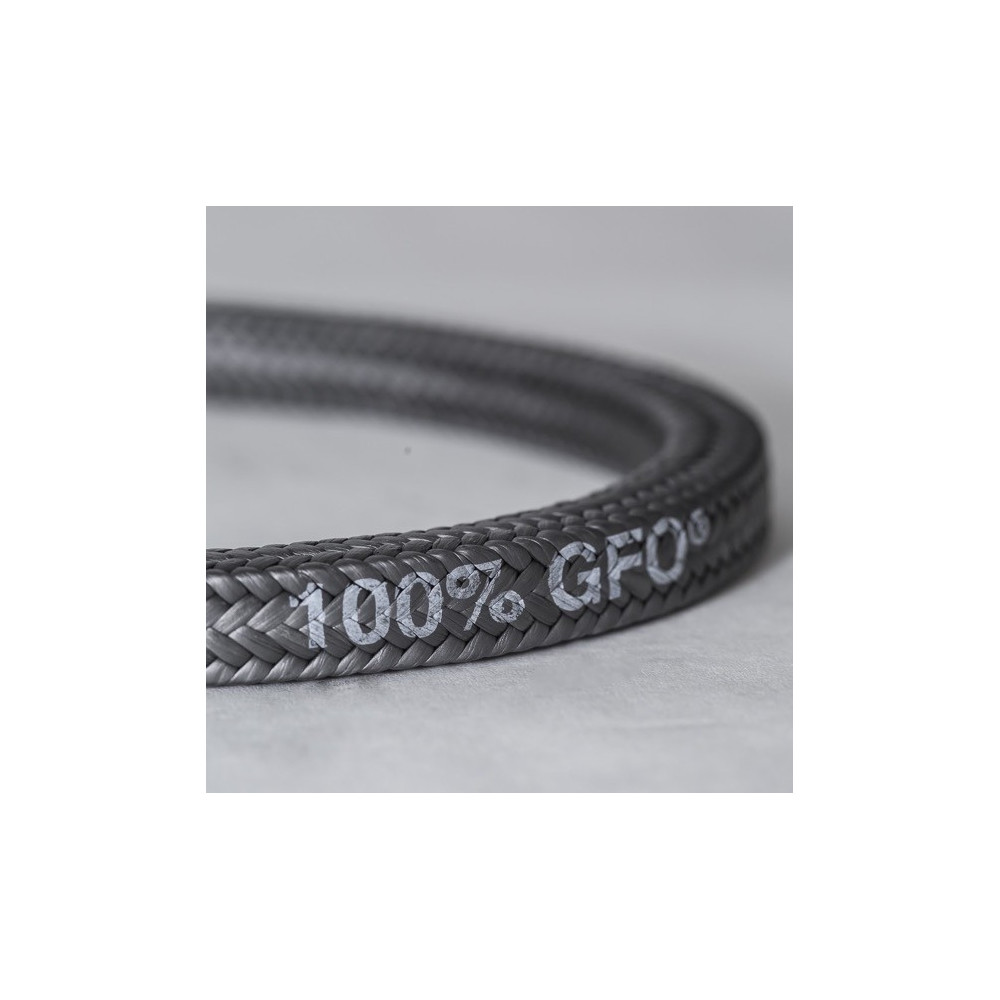

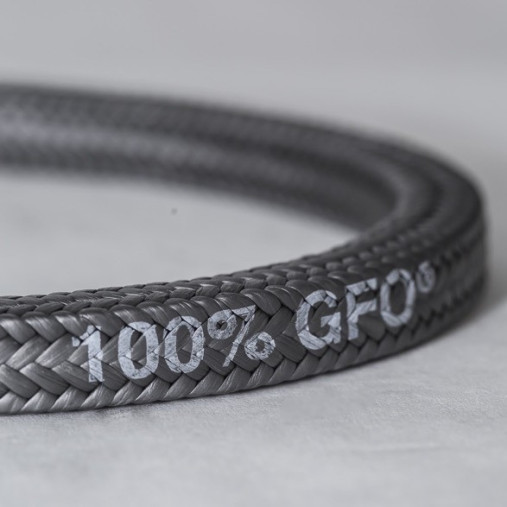

GFO Packing Certified by W.L. Gore [100%]
STYLE: ML5705
ML5705 is engineered to provide high performance and reliability to your equipment. It is a cutting-edge packing technology that comprises finely ground particles of premium-grade graphite in a PTFE matrix. This ensures that graphite migration is appropriately controlled and the packing’s performance is optimized.
ML5705 comprises 100% GFO® fibers and bears the W.L. Gore seal of approval. The GFO® fibers offer additional reliability and performance, making it ideal for professionals seeking superior sealing capabilities.
ML5705 exhibits excellent all-around performance characteristics, including exceptional thermal conductivity. Enabling it to withstand high shaft speeds and attain higher feet-per-minute (fpm) ratings, making it an excellent choice for high-speed applications.
Product Specifications
Operating Capabilities
- Temperatures: 500°F/260°C
- Shaft speeds to 4400FPM
- pH: 0 to 14
Features
ML5705 is a top-of-the-line compression packing product specially designed to deliver outstanding performance and reliability. With the incorporation of the highest quality graphite particles, a PTFE matrix, and 100% GFO® fibers, ML5705 will exceed your expectations and provide optimal results for your equipment.
