STYLE: ML5740HC
Finely ground particles of the highest quality graphite in a PTFE matrix to control graphite migration. It is effective in all equipment, including pumps, hydra-pulpers, and valves.

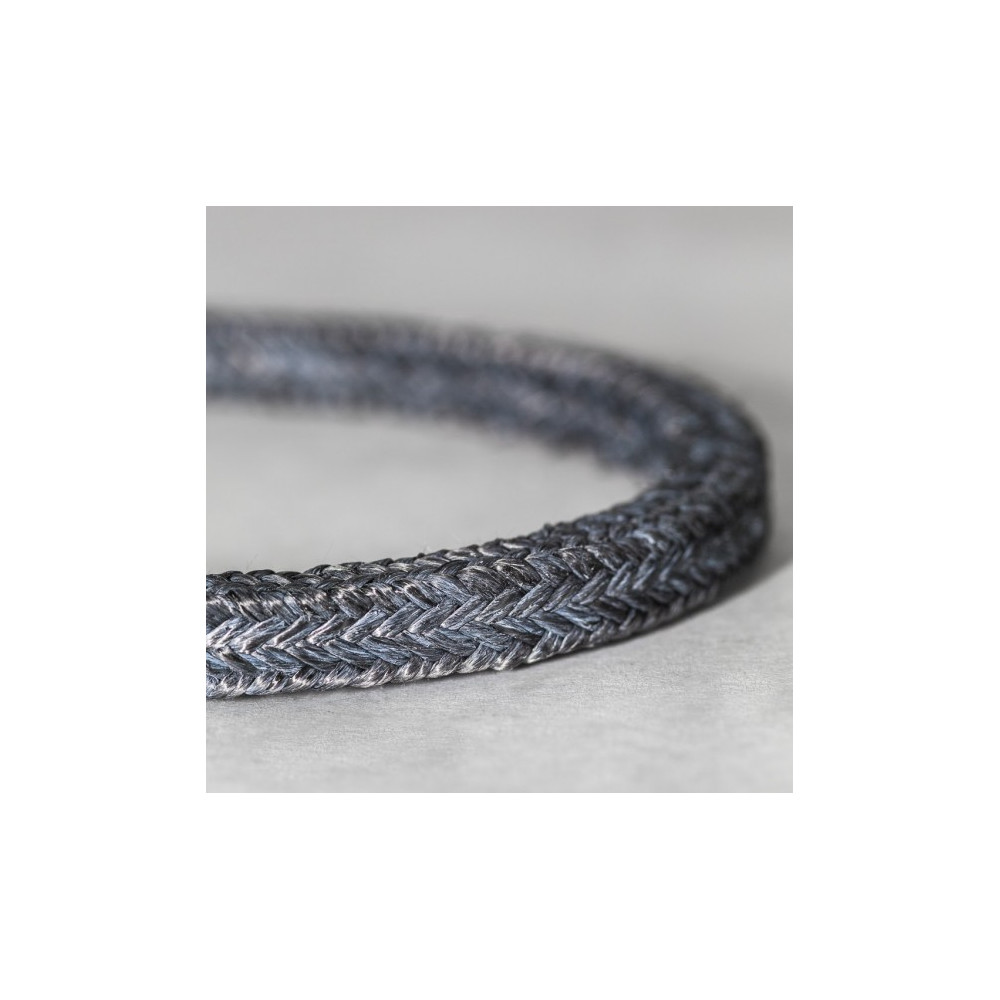

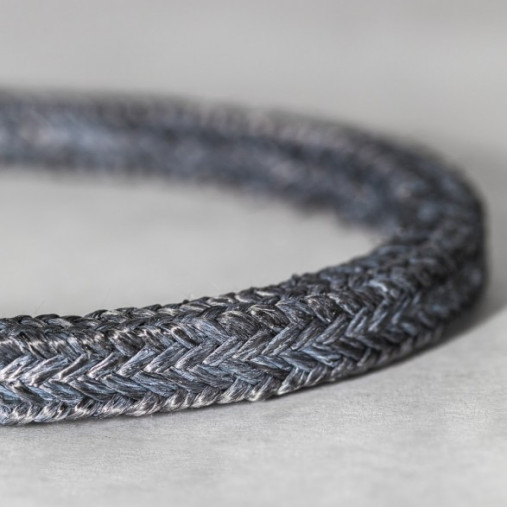

Graphite Twisted Fibers Braided in a Multi-Lok Construction
STYLE: ML5700
The highest quality chemically resistant fibers are twisted together and braided. This packing has an extremely low coefficient of friction. The lightweight yarn provides more feet per pound than PTFE packing. Graphite is a heat conductor and dissipates heat in the stuffing box, permitting higher shaft speeds and less leakage than other packings.
Product Specifications
Operating Capabilities
- Temperatures: 1200°F/649°C (in steam) ; 800°F/427°C
- Speed: Unlimited
- pH: 0 to 14
Recommended for
Strong caustics, acids, chemicals and high-pressure steam.
Not Recommended for
Fuming nitric acid, oleum and fluorine.
