STYLE: ML5740HC
Finely ground particles of the highest quality graphite in a PTFE matrix to control graphite migration. It is effective in all equipment, including pumps, hydra-pulpers, and valves.
ML8574

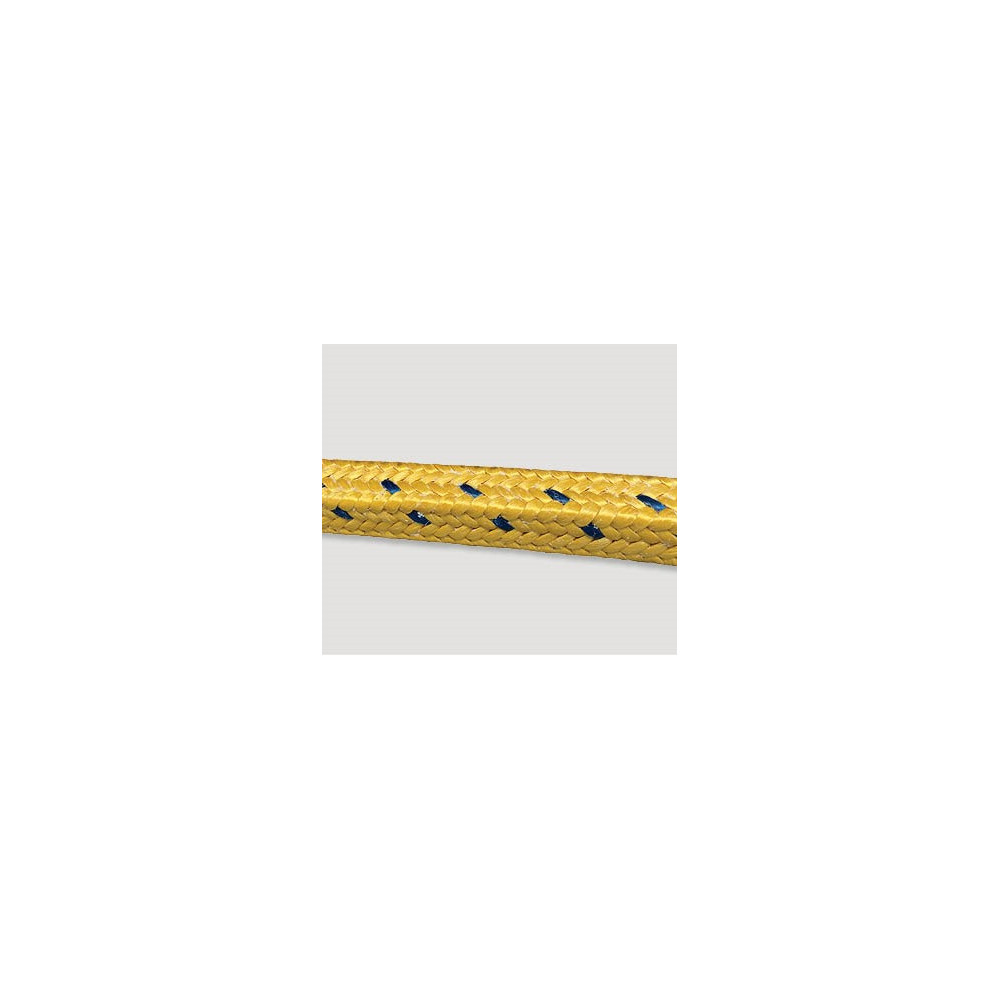

STYLE: ML8574
Multi-Lok packing is made of continuous filament polyimide and PTFE fibers that are impregnated with PTFE dispersion during the braiding process. It is abrasion resistant and great for pumping process fluids with high solids content.
ML8574 is ideal for dredges, sand, and salt pump.
Product Specifications
Operating Capabilities
- Temperatures: 500°F/260°C
- Speed: 2500FPM
Features
Recommended for general applications including mild acids and solvents and wastewater and sludge pumps in wastewater treatment plants.
