STYLE: ML5740HC
Finely ground particles of the highest quality graphite in a PTFE matrix to control graphite migration. It is effective in all equipment, including pumps, hydra-pulpers, and valves.

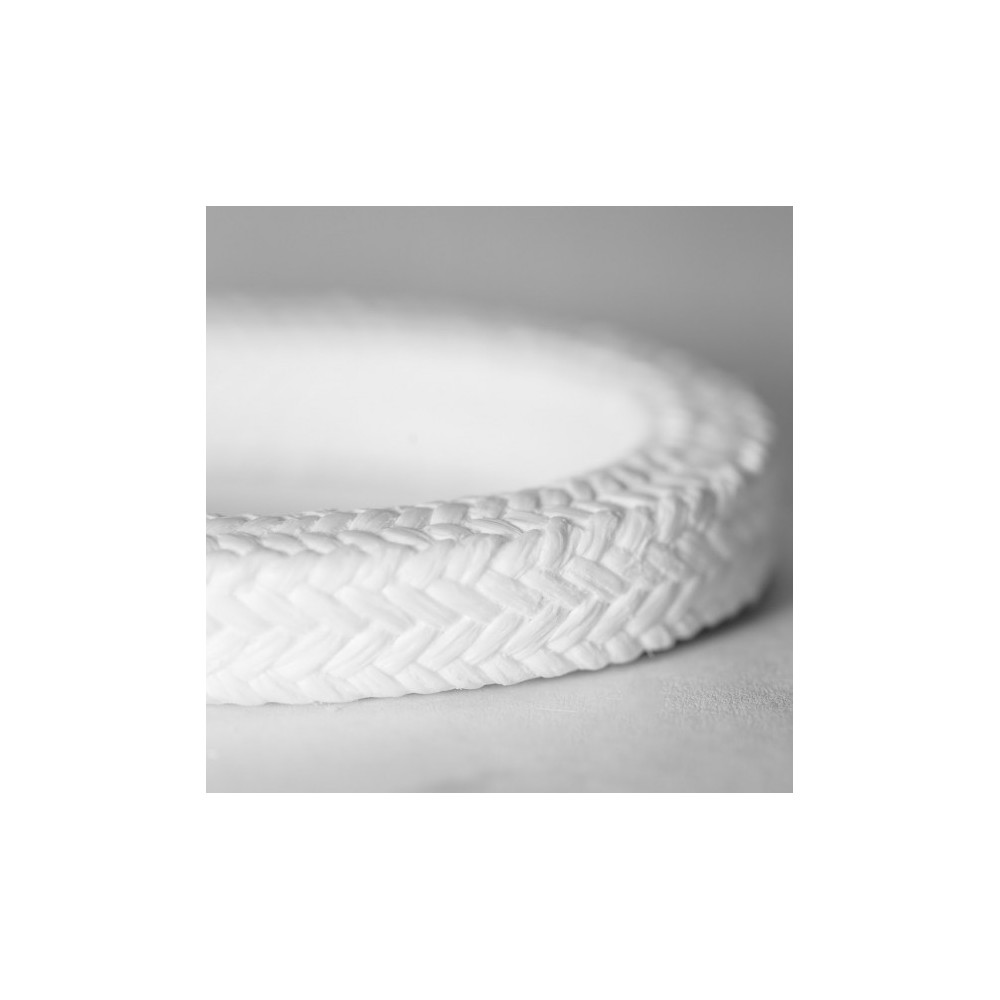

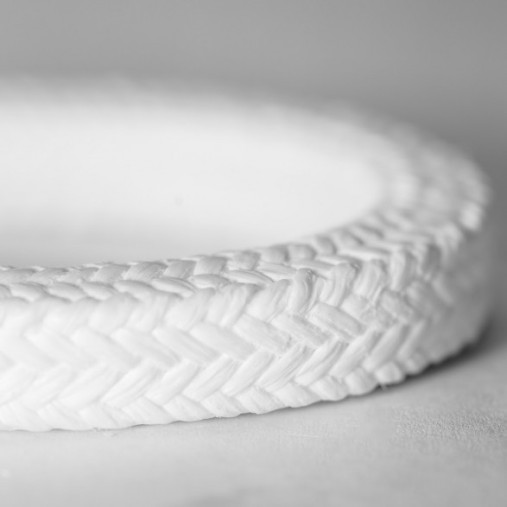

White PTFE Braided Packing for Food Service
STYLE: ML5706FDA
ML5706FDA complies with the FDA and USDA requirements under Title 21 Food and Drugs, 178.2570, Lubricants with Incidental Food Contact, 177.1550, Perfluorocarbon Resins. ML2236FDA contains only materials permitted for food contact use by the U.S. Department of Agriculture and the Food and Drug Administration.
Product Specifications
Operating Capabilities
- Temperatures: 500°F/260°C
- Speed: 1200FPM
- pH: 0 to 14
Design Features
Manufactured from the purest dry PTFE fibers. Lubricated with a proprietary food-grade lubricant for faster break-in and reduced shaft wear.
You May Also Like
Related Products
STYLE: ML8201
Pure homogenous graphite bonded to a fiberglass carrier for strength and thermal stability. It has no added lubricants or binders to cook out or become brittle.
STYLE: SB2028
Braided carbon yarn with Inconel wire inserted over a pliable homogeneous core of material. The braid is made from a high temperature, Inconel wire inserted yarn. The finished packing is treated with a...
STYLE: 2004
This packing is manufactured from soft ribbons of special alloy lead foil. It has a twisted and crimped construction, with each layer of the foil thoroughly lubricated and graphited.
STYLE: ML8574
Multi-Lok packing is made of continuous filament polyimide and PTFE fibers that are impregnated with PTFE dispersion during the braiding process. It is abrasion resistant and great for pumping process...
STYLE: ML5728
The special impregnation procedure fills all voids throughout the body of the packing with PTFE dispersion. A superior general purpose packing for tougher-than-normal applications.
STYLE: ML5726
ML5726 is a Multi-Lok braid of special proprietary blend of Tek-Pro fibers, treated with a specially formulated blend of low-friction lubricants. Each strand is individually coated with a special grade...
STYLE: ML8220
ML8220 provides a softer and more flexible packing with shaft speeds up to 3,300 feet per minute (fpm). It performs well in color-sensitive environments.
ML8220 complies with the FDA and USDA...
STYLE: ML5708
Unlike other PTFE fluorocarbon filament packing, ML5708 fibers are prelubricated to provide a softer, more flexible packing, with improved peripheral speed characteristics and exothermic properties.
No...
STYLE: ML8240
ML8240 is an excellent Multi-Lok braided packing incorporating Novoloid fibers infused with PTFE impregnation, offering superior performance. What sets it apart is the complete lubrication process...
STYLE: ML8470
ML8470 is made of a meta-aramid fiber and is used in most general services. It is recommended for pumps, agitators, and mixers.
STYLE: ML8560
Proprietary carbon fiber is braided to operate in extreme conditions. Because of its high thermal conductivity and lubricity, ML8560 packing can operate without flush water in some applications.
STYLE: ML5700
The highest quality chemically resistant fibers are twisted together and braided. This packing has an extremely low coefficient of friction. The lightweight yarn provides more feet per pound than PTFE...
STYLE: ML8802
HIGH SPEED PACKING
ML8802 is manufactured from true filament yarns, not a folded tape or ribbon, most commonly associated with other PTFE and graphite composite packings. Each filament (approx. 400 per...
STYLE: ML8203
Flexible graphite jacket encasing Multi-Lok carbon fiber. ML8203 is recommended for critical valves; rising stem applications; compliance valves in volatile organic and inorganic chemical service and...
![GFO Packing Certified by W.L. Gore [100%]](https://www.vossfe.com/73-home_default/gfo-packing-certified-by-wl-gore-100-.jpg)
STYLE: ML5705
ML5705 is engineered to provide high performance and reliability to your equipment. It is a cutting-edge packing technology that comprises finely ground particles of premium-grade graphite in a PTFE...
STYLE: ML8201Z
ML8201Z is a Multi lock braided flexible graphite packing. No added lubricants or binders to cook out or become brittle. Contains zinc dust as a corrosion inhibitor.
STYLE: ML8201P
ML8201P is a Multi lock braided flexible graphite packing. No added lubricants or binders to cook out or become brittle. Contains phosphate as a corrosion inhibitor.
