STYLE: ML5707
ML5707 PTFE fibers are treated with a PTFE dispersion which fills and seals all voids in the packing body. After braiding, a PTFE coating is applied. This packing will not wick making it an excellent...

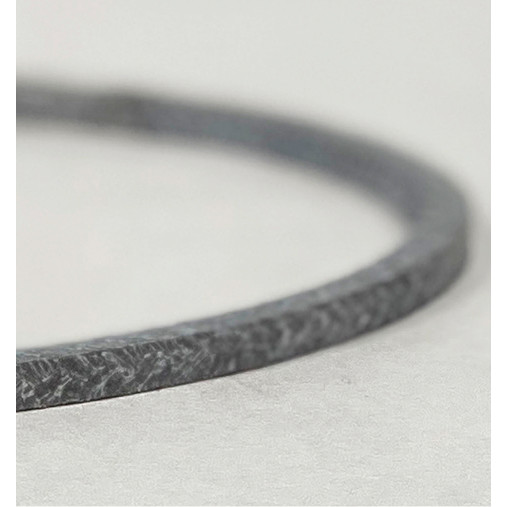

Fugitive Emissions Packing (API 622)
STYLE: ML8622
ML8622 fugitive emissions packing is certified API 622 emission compliant. ML8622 is recommended for high-temperature valves and pressure vessels. It performs well in high-temperature, high-pressure applications, nonoxidizing chemicals, hydrocarbons, and steam; great for valve OEMs.
Product Specifications
Operating Capabilities
- Temperatures: 1250°F/676°C
- Pressure: Up to 5000 psi
- pH: 0 to 14
Design Features
- API 622 emission compliant
- Die forms very well
- Braided, nonhardening
- Does not shrink
