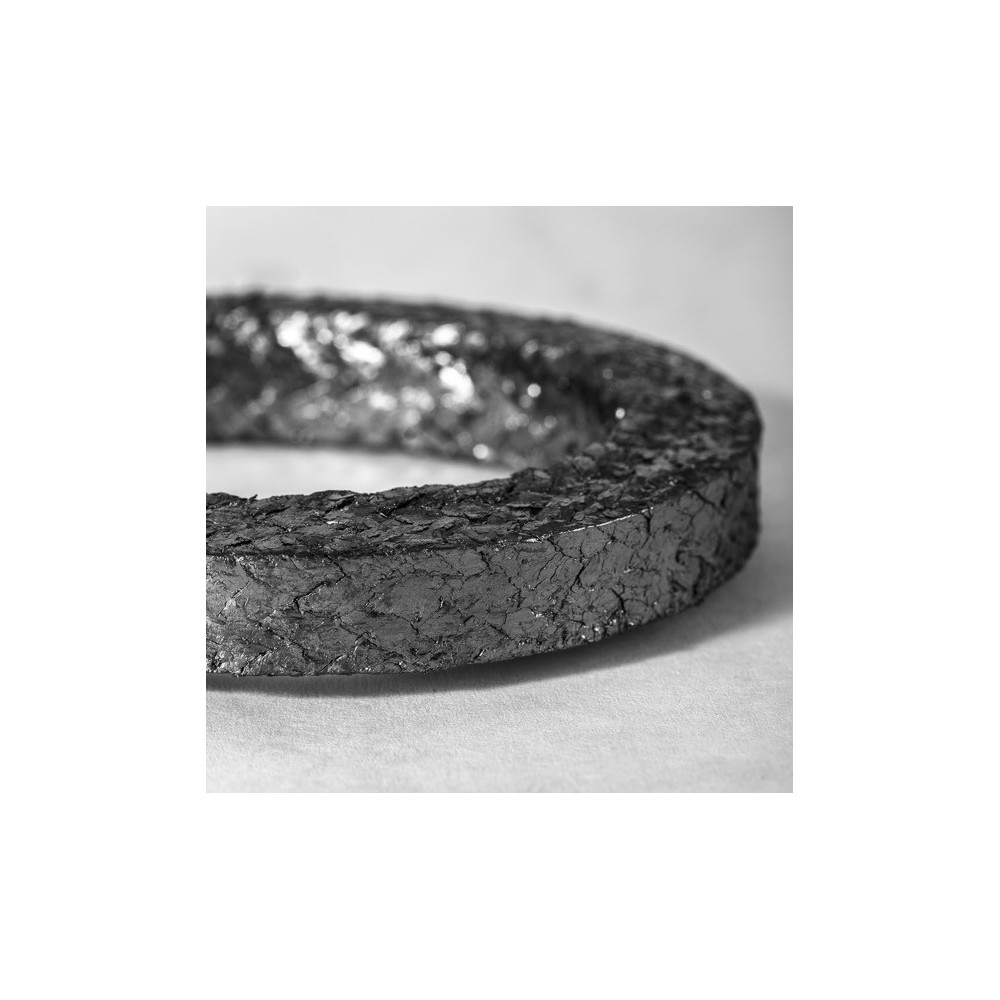

Braided Flexible Graphite Packing
STYLE: ML8201
Pure homogenous graphite bonded to a fiberglass carrier for strength and thermal stability. It has no added lubricants or binders to cook out or become brittle.
Product Specifications
Operating Capabilities
- Temperatures: 850°F/454°C (in oxidizing conditions); 1200°F/694°C (in steam)
- Shaft Speeds: 4000 FPM
- pH: 0 to 14 (except strong oxidizers)
Design Features
Pure homogenous graphite bonded to a fiberglass carrier for strength and thermal stability. It has no added lubricants or binders to cook out or become brittle.
Equipment:
Pumps and valves, volatile organic chemical service.
Recommended For:
Rotating shafts where high shaft speeds and thermal conductivity are required.
